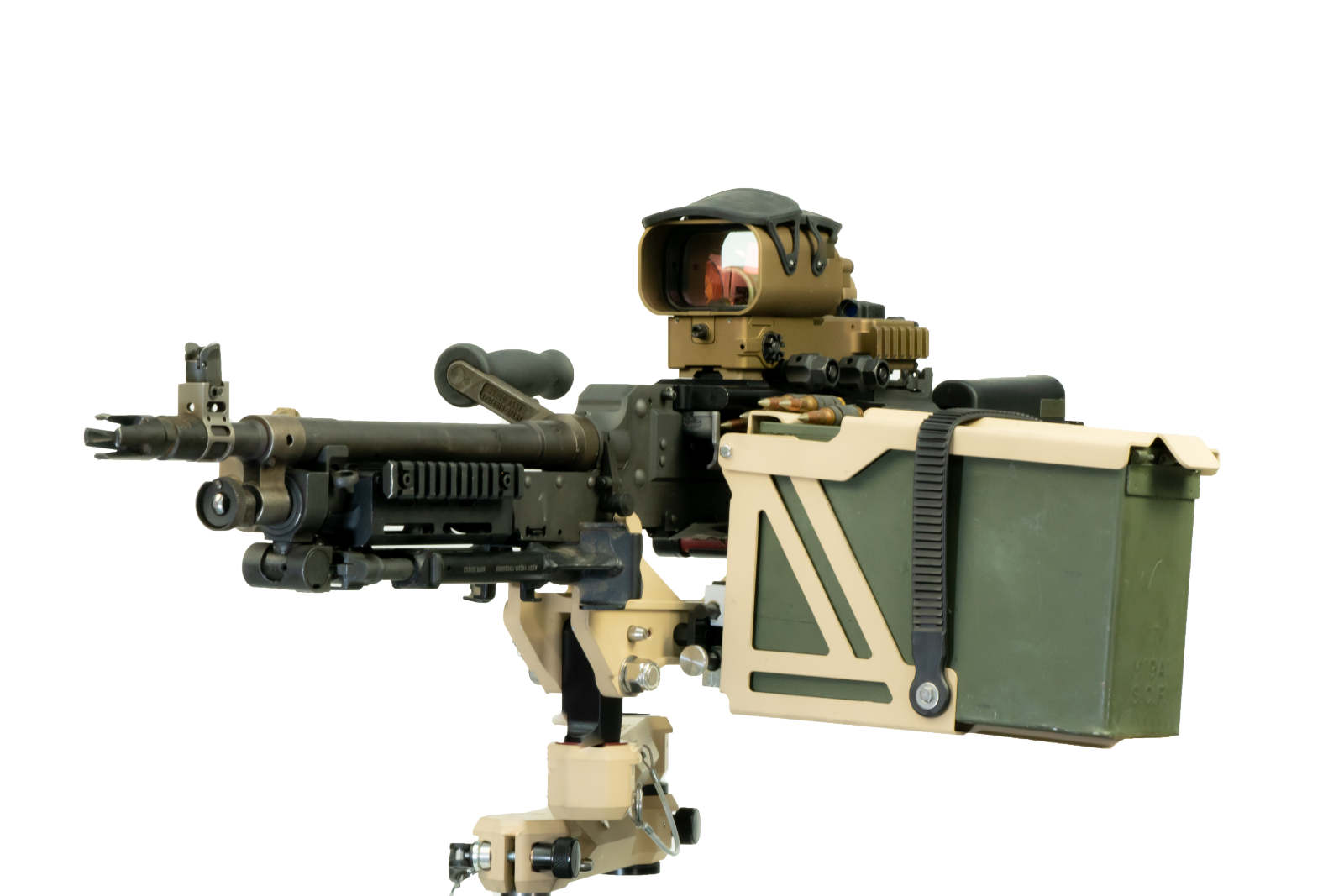

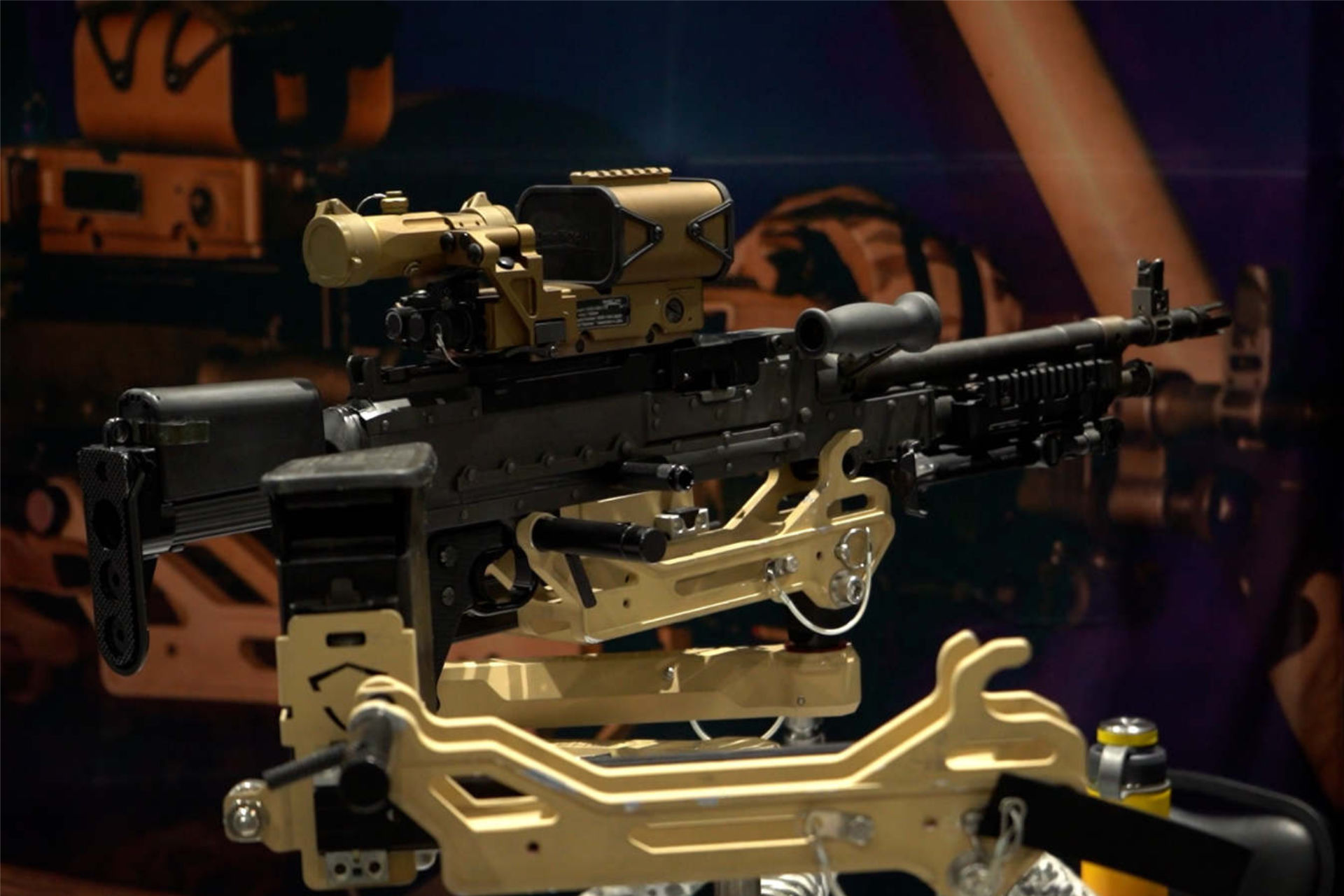

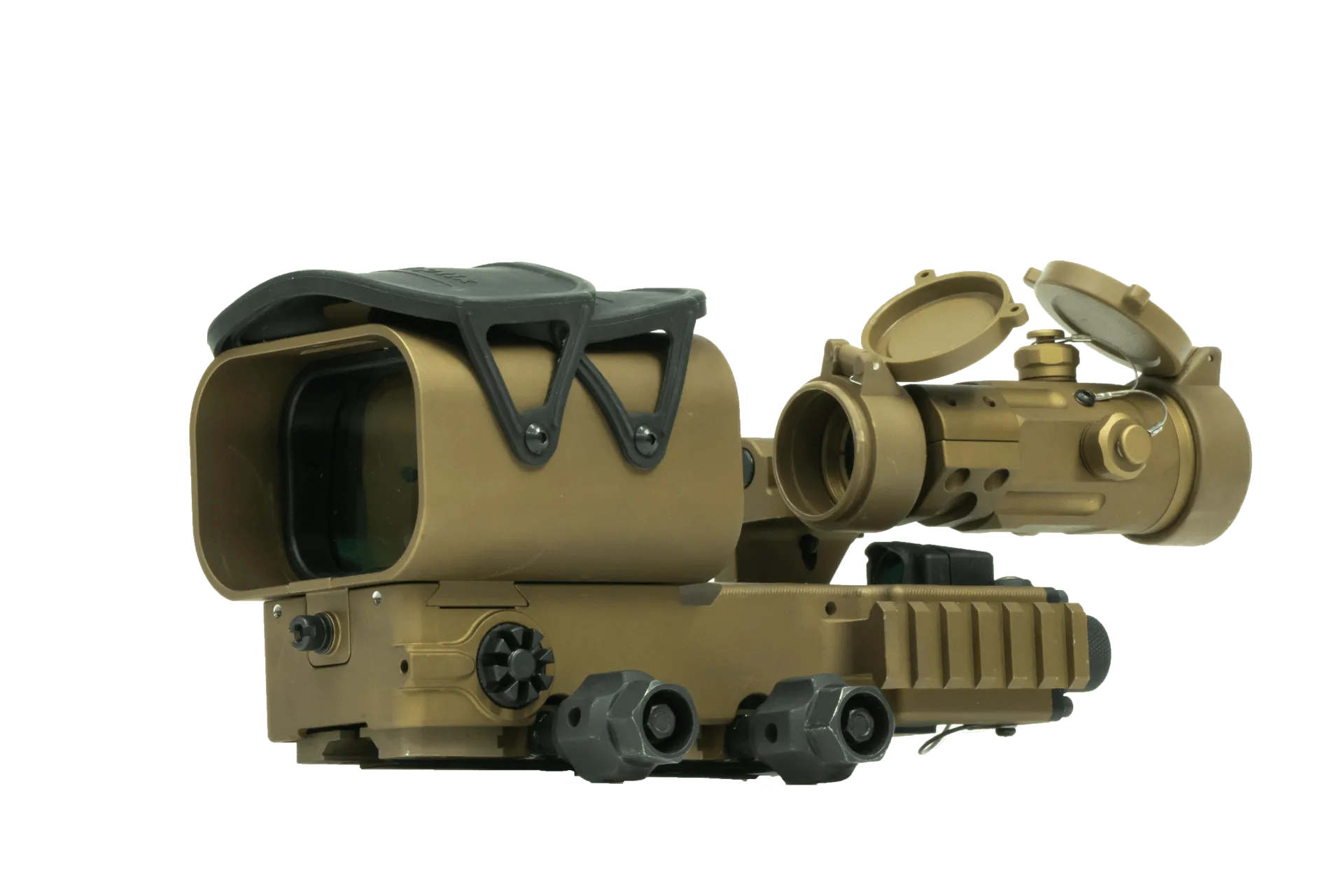

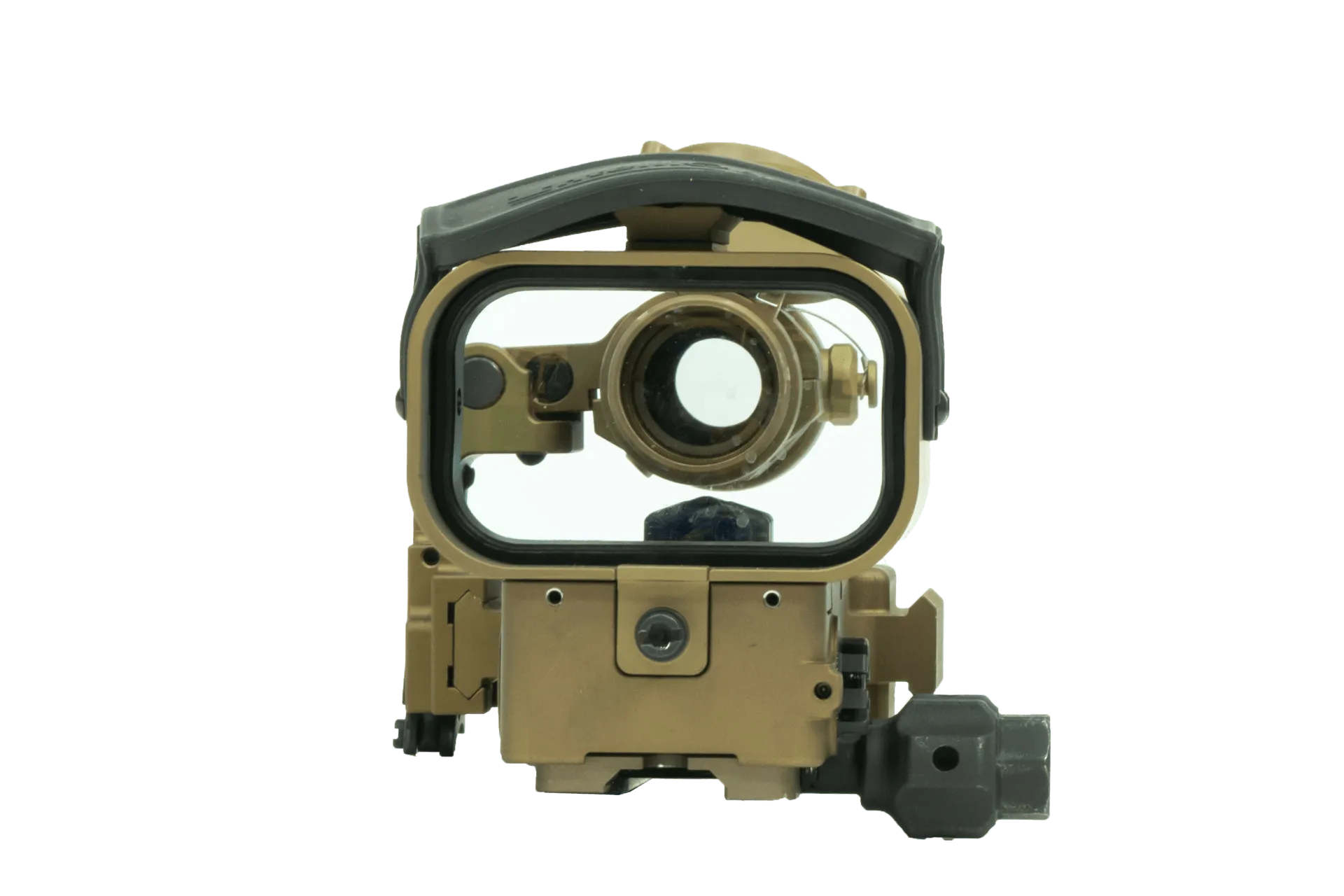

MGS-1 Specs
Calibers
MGS1-M1X: 12.7 mm (0.50 Cal)
MGS1-L1X: 12.7mm (0.50 Cal)
Dimensions [L xW x H]
MGS1-M1X: ~ 8.6 x 4.7 x 4.5 in (220 x 120 x 115 mm)
MGS1-L1X: ~9.4 x 6 x 5.1 in (240 x 150 x 130mm)
Weight
MGS1-M1X: ~3 Lbs (~1.4 kg)
MGS1-L1X: ~4.5Lbs (~2 kg)
Lens Size
MGS1-M1X: ~3.4 x 2 in (88x 55 mm)
MGS1-L1X: 4.7 x 2.8 in (120 x 70mm)
Total Field of View
MGS1-M1X: ~80m at 200m (>25 degrees)
MGS1-L1X: ~80m at 200m (>25 degrees)
Azimuth/Elevation Adj.
MGS1-M1X: ~0.5 MOA/click
MGS1-L1X: ~0.5 MOA/click
Eye Relief
MGS1-M1X: Unlimited
MGS1-L1X: Unlimited
Red or Green Dot Size
MGS1-M1X: Dot = 3 MOA and Circle = 35 MOA
MGS1-L1X: Dot = 3 MOA and Circle = 35 MOA
Torque Limit Lock (TLL)
MGS1-M1X: >3.0 Nm
MGS1-L1X: >3.0 Nm
LED Colors
MGS1-M1X: Red and Green selectable
MGS1-L1X: Red and Green selectable
Trajectory Ranges
MGS1-M1X: 200,400,600,800,1000,1200,1400,1600 & 1800
MGS1-L1X: 200,400,600,800,1000,1200,1400,1600 & 1800
Brightness Adjustments
MGS1-M1X: 8 daylight & 3 Night Vision settings
MGS1-L1X: 8 daylight & 3 Night Vision settings
Magnification-Options
MGS1-M1X: 3x, 5x, or 3-8x Variable
MGS1-L1X: 3x, 5x, or 3-8x Variable
Power Supply
MGS1-M1X: 1 type CR 123 3V lithium
MGS1-L1X: 1 type CR 123 3V lithium
Battery Life ~1000+ hr
MGS1-M1X: ~1000 hr
MGS1-L1X: ~1000 hr
Mounting
MGS1-M1X: MIL-STD-1913 rail (3 rails)
MGS1-L1X: MIL-STD-1913 rail (3 rails)
Operational Temp
MGS1-M1X: -41 degrees C to +71 degrees C
MGS1-L1X: -41 degrees C to +71 degrees C

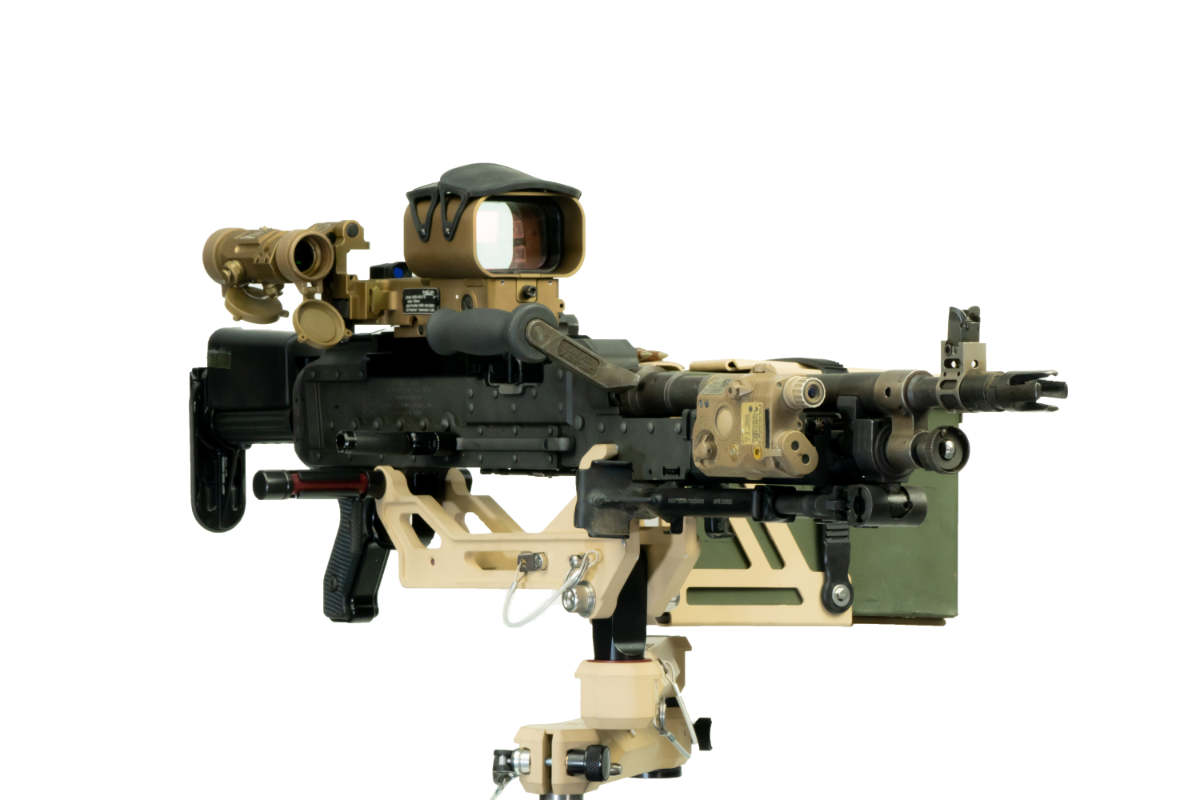

The impact of Blackbridge Defense, will fill current operational gaps and integrate well within our Operational Detachment Alpha’s (ODAs). The Shadow Mount is designed specifically for U.S. Special Operations Soldiers and is viable for a variety of other DOD, National and State elements."
